UMX24-DC1524

UMX24-DC1524 Higher Voltage DMX or LMX to Analog Translator

(What discontinued products are comparable to this product?)

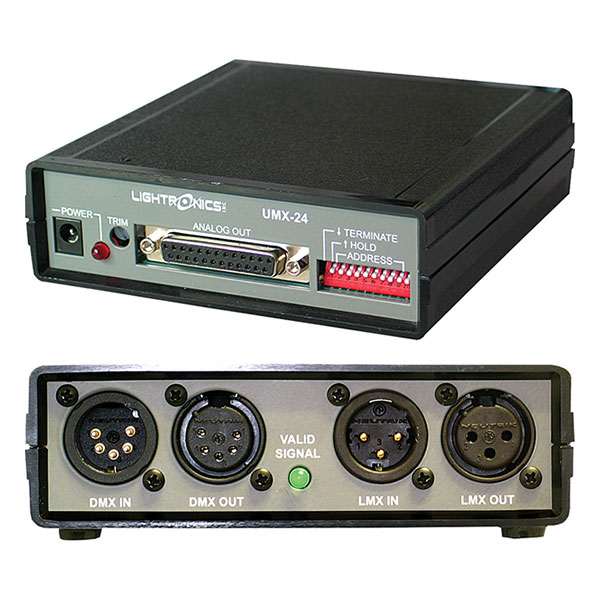

The UMX24-DC1524 is a lighting protocol translator designed for theatrical, worship, educational, entertainment, and architectural lighting applications requiring communication between DMX-512 or LMX-128 lighting controllers and higher-voltage analog dimming systems. Suitable for churches and houses of worship, theaters, schools, performance venues, and multi-purpose facilities, the UMX24-DC1524 converts digital lighting control signals into twenty-four channels of factory-configured analog output for compatibility with specialized analog lighting equipment.

Key Features

• DMX-512 or LMX-128 input
• Twenty-four analog output channels
• Factory-configured 0–15VDC, 0–20VDC, or 0–24VDC analog output
• Selectable start address
• Output Hold function
• DMX-512 pass-through connector
• LMX-128 pass-through connector
• DB-25 analog output connector
• +15VDC phantom power or external power supply operation
• Compact portable enclosure

The UMX24-DC1524 receives either a USITT DMX-512 or LMX-128 lighting control signal and converts the incoming data into twenty-four channels of higher-voltage analog output for use with compatible analog dimming systems requiring output levels above the standard 0–10VDC range. Selectable start addressing allows the translated output channels to be assigned as required for the installation.

The unit provides both DMX-512 and LMX-128 pass-through connectors for continued distribution of the incoming control signal and incorporates an Output Hold function that maintains the last valid output levels during temporary signal interruption.

Designed for dependable operation in permanent and portable lighting systems, the UMX24-DC1524 features a DB-25 analog output connector, front-panel status indicators, selectable DMX termination, and operation from either LMX phantom power or an external power supply. Its expanded analog output capability provides a practical solution for integrating modern lighting controllers with legacy analog dimming systems requiring 0–15VDC, 0–20VDC, or 0–24VDC control signals.
